How Do You Measure Shaft Length on an Outboard Motor?

Choosing the correct outboard motor shaft length is important for safe and smooth boating. If the shaft is too short or too long, your boat may lose performance, use more fuel, or have trouble maintaining a steady speed. The good news is that you can check the shaft length with a tape measure and a few simple steps.

How do you measure shaft length on an outboard motor? In most cases, you measure vertically from the motor’s specified mounting reference point to the anti-ventilation plate above the propeller. For many conventional outboards, the common reference points are the top of the mounting bracket or the motor’s transom-mounting surface and the anti-ventilation plate. However, measurement methods can vary by manufacturer, so check your owner’s manual before making a final decision.

Standard outboard shaft lengths are often around 15, 20, 25, or 30 inches. These are common categories, not universal measurements for every motor. Your boat’s transom design and the manufacturer’s recommendations will help determine which length you need.

In this guide, you will learn how to measure an outboard motor shaft, measure your boat’s transom height, understand standard shaft sizes, and avoid common mistakes when choosing a replacement motor.

What Is Outboard Motor Shaft Length?

Outboard motor shaft length describes the vertical distance associated with the motor’s mounting height and the lower unit’s position. It helps determine how far the propeller and gearcase sit below the motor’s mounting area when the engine is installed.

The shaft runs from the powerhead area toward the lower unit, where the driveshaft transfers power to the gears and propeller. For choosing a motor, however, you should use the manufacturer’s stated shaft-length measurement rather than trying to measure the internal driveshaft itself.

The correct shaft length helps place the propeller at a suitable depth in the water. It also allows the motor to fit the boat’s transom as intended.

Understanding Short, Long, and Extra-Long Shafts

Outboard motors come in several shaft-length categories. The most common categories for many recreational boats are short shaft, long shaft, and extra-long shaft.

Here are the typical nominal sizes:

Shaft category	Common nominal length	General application
Short shaft	15 inches	Boats with lower transoms
Long shaft	20 inches	Many standard-height transoms
Extra-long shaft	25 inches	Boats designed for taller transoms
Ultra-long shaft	30 inches	Certain specialized boats

These figures are general reference points. Some manufacturers offer different sizes or use model-specific measurement conventions.

A 15-inch shaft is often used on small boats with a transom designed for a short-shaft motor. A 20-inch shaft is common on many recreational fishing boats. A 25-inch shaft may be needed for a taller transom, while a 30-inch model is used on some larger or specialized boats.

Do not assume that every motor in a category measures exactly the same way. Check the model’s specifications to confirm its nominal shaft length.

Why Shaft Length Matters for Boat Performance

Shaft length affects where the propeller sits in the water. This position can influence thrust, handling, and the way the boat responds when you accelerate or turn.

If the shaft is too short, the propeller may sit too close to the water’s surface. The propeller can draw in air or exhaust gases, a problem known as ventilation. When this happens, engine speed may rise while the boat loses thrust.

If the shaft is too long for the boat’s mounting arrangement, the gearcase and propeller may sit deeper than intended. This can increase drag and affect performance. The motor may also be difficult to mount at the correct height.

A suitable shaft length helps the motor operate within its intended installation range. It does not guarantee better performance on its own, because propeller selection, engine power, boat weight, trim, and hull design also matter.

How Do You Measure Shaft Length on an Outboard Motor?

Measuring an outboard motor shaft is simple when you know the correct starting and ending points. You do not need to remove the motor or take apart its lower unit. In most cases, a tape measure and a clear view of the mounting area are enough.

Before starting, make sure the boat and motor are stable. Turn the engine off, remove the ignition key, and keep your hands clear of moving parts. If the motor must be tilted or repositioned, follow the manufacturer’s safety instructions.

Step 1: Find the Top of the Mounting Bracket

Start by locating the part of the outboard that rests against the boat’s transom. The transom is the rear section of the boat where the motor is mounted.

Look at the motor’s mounting bracket. This is the structure that holds the outboard against the transom and allows it to be secured in place.

For many conventional outboards, the shaft-length reference starts at the top of the transom-mounting surface or another specified mounting point. The exact reference depends on the motor’s design.

Do not automatically use the top of a decorative engine cover or the top of the powerhead. These are not the correct reference points for standard shaft-length checks.

Important: Check the owner’s manual or manufacturer’s diagram to confirm the exact starting point for your model.

Step 2: Locate the Anti-Ventilation Plate

Next, find the anti-ventilation plate on the lower unit.

The anti-ventilation plate is a flat metal section located above the propeller. It extends outward from the gearcase and helps reduce unwanted air from reaching the propeller during normal operation.

You can usually identify it by looking just above the propeller hub. It resembles a horizontal fin or flat shelf on the lower unit.

Do not confuse the anti-ventilation plate with the smaller trim tab that may sit above or behind the propeller. The trim tab is a separate component and is not the correct ending point for this measurement.

If you cannot clearly identify the plate, consult a parts diagram for your specific outboard model.

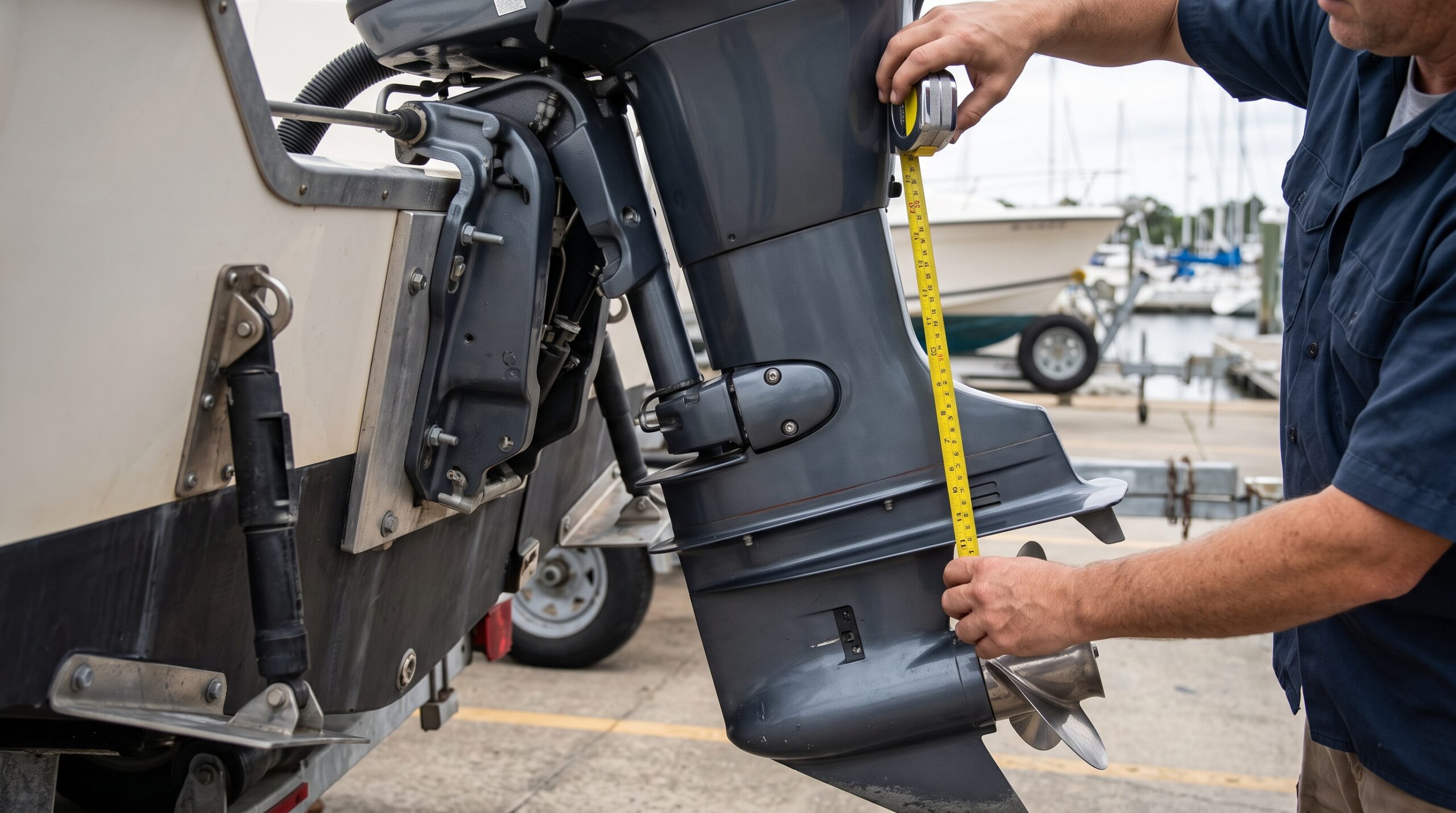

Step 3: Measure the Distance

Now use a tape measure to check the distance between the specified mounting reference point and the anti-ventilation plate.

Follow these steps:

1. Place the tape at the manufacturer’s stated mounting reference point.
2. Extend the tape vertically down toward the anti-ventilation plate.
3. Keep the tape straight and aligned with the motor’s centerline.
4. Measure to the corresponding point on the plate, following the manufacturer’s diagram.
5. Record the result in inches.

Avoid measuring along a sloping surface or following the outside shape of the motor. Shaft length is generally a vertical measurement, not the total length of the visible housing.

For example, if the specified distance is approximately 20 inches, the motor may belong to the nominal 20-inch long-shaft category. However, do not classify the motor from your measurement alone. Manufacturing designs and measurement conventions can vary.

Use the manufacturer’s stated shaft length as the final reference.

Step 4: Check the Measurement

Repeat the measurement to reduce the chance of an error.

Check that the tape begins at the correct mounting reference point and ends at the correct location on the anti-ventilation plate. Make sure the tape has not slipped or tilted.

Next, compare your result with the information on the motor’s identification plate, the owner’s manual, or the manufacturer’s official specifications.

If the measured distance differs slightly from a published nominal length, do not assume the motor is defective or incorrectly sized. The published category may use specific reference points that differ from your initial measurement.

Before buying a replacement outboard, confirm three things:

• The motor’s nominal shaft length.
• The boat’s recommended transom height and mounting requirements.
• The motor’s compatibility with the boat and its rated power limits.

If the information does not match, ask a qualified marine technician or the motor manufacturer to verify the correct size.

What Are the Standard Outboard Motor Shaft Lengths?

Many outboard manufacturers offer short, long, extra-long, and ultra-long shaft options. These categories help boat owners match the motor to the transom.

The most suitable option depends on the boat’s design, not just its overall length or intended use.

15-Inch Short Shaft

A short-shaft outboard is commonly designed for a transom with a nominal height of about 15 inches.

These motors are often found on small boats, including certain dinghies, tenders, and compact fishing boats. Some lightweight aluminum boats and small inflatables are also designed for short-shaft outboards.

A short shaft can work well when the boat’s mounting area matches the motor’s specifications.

However, not every small boat requires a short shaft. Some compact boats have taller transoms or other mounting arrangements that require a different size.

Before purchasing a 15-inch motor, measure the boat’s transom and check the boat manufacturer’s recommendations.

20-Inch Long Shaft

A long-shaft outboard commonly has a nominal shaft length of about 20 inches.

This size is widely used on many recreational boats, including certain aluminum fishing boats, fiberglass boats, and other vessels designed for a standard-height transom.

A 20-inch shaft places the gearcase and propeller lower than a typical 15-inch setup when installed at their intended mounting positions.

This can help maintain the correct propeller depth on boats designed for a long-shaft motor.

Still, a 20-inch motor is not automatically suitable for every fishing boat. The transom’s actual design, the manufacturer’s mounting instructions, and the hull’s intended setup must all be considered.

25-Inch Extra-Long Shaft

An extra-long-shaft outboard commonly has a nominal shaft length of about 25 inches.

It is used on boats designed with taller transoms or mounting arrangements that require the propeller to sit lower in the water.

Some larger fishing boats, certain offshore-style boats, and other specialized vessels may require extra-long-shaft outboards.

The extra length helps place the gearcase at the intended depth when the boat’s transom is taller than that of a typical long-shaft application.

Do not choose a 25-inch motor simply because you want the propeller deeper in the water. An unnecessarily long shaft may increase drag or place the motor outside the recommended mounting range.

Always verify compatibility with the boat and motor manufacturers.

30-Inch Ultra-Long Shaft

Some outboards are available with a nominal shaft length of about 30 inches. These are often described as ultra-long-shaft models.

They are intended for certain boats with unusually tall transoms or specialized mounting arrangements. Availability depends on the engine model and manufacturer.

A 30-inch shaft is not a general upgrade over a 25-inch shaft. It is a specific option for boats designed to accommodate it.

Before selecting an ultra-long-shaft motor, confirm the required shaft category, mounting height, engine compatibility, and available clearance. If the boat uses a special bracket or raised mounting system, follow the manufacturer’s installation instructions.

How to Measure Your Boat’s Transom Height

Measuring the transom is just as important as checking the outboard motor. The transom measurement helps you determine which shaft category may fit your boat.

However, transom height and outboard shaft length are two different measurements. You should not assume that they will always match exactly.

Find the Highest Point of the Transom

Park the boat on a stable trailer or place it securely in a suitable working area. Make sure it cannot move while you measure.

Find the section of the transom where the outboard mounting bracket will sit. This is the area that supports the motor.

Place one end of a tape measure at the top of the transom’s mounting surface. Extend the tape straight down to the bottom edge of the transom, following the boat manufacturer’s measurement method.

Keep the tape vertical rather than following the transom’s angle or curve.

Record the measurement in inches. If the transom has a step, notch, raised platform, or mounting bracket, take note of these features because they may affect how the motor should be installed.

For example, a transom measurement near 20 inches may suggest a long-shaft application on many conventional boats. But this is only a starting point, not a universal rule.

The correct mounting reference may change with the hull design or motor installation.

Match Transom Height to Outboard Shaft Length

Once you have measured the transom, compare the result with the shaft-length recommendations in the boat’s owner’s manual.

Many conventional boats use the following approximate pairings:

Approximate transom height	Common shaft category
Around 15 inches	Short shaft
Around 20 inches	Long shaft
Around 25 inches	Extra-long shaft
Around 30 inches	Ultra-long shaft

These are general guidelines for common setups. They do not replace manufacturer specifications.

The actual mounting height may also be affected by the hull’s shape, the transom’s design, the use of a motor bracket, and the recommended engine mounting position.

For example, two boats with transoms of similar height may require different mounting arrangements because their hulls and brackets differ.

If you are replacing an existing outboard, check the old motor’s specifications and confirm that the boat manufacturer still recommends that shaft category. A previous installation is useful evidence, but it is not proof that the setup is correct.

Common Mistakes When Measuring Outboard Shaft Length

Even a simple measurement can lead to the wrong purchase if you use the wrong reference points. Avoid the following mistakes to make your measurement more reliable.

Measuring From the Wrong Point

One common mistake is measuring from the top of the engine cover rather than the designated mounting reference point.

The engine cover, powerhead, and other outer parts are not standard starting points for shaft-length measurements.

Another mistake is measuring from the bottom of the mounting bracket without checking the manufacturer’s diagram.

The correct starting point depends on the motor’s design. Always confirm where the manufacturer says to begin.

The same rule applies to the ending point. Use the anti-ventilation plate reference shown in the manual, not the propeller tip or trim tab.

Confusing Shaft Length With Transom Height

Shaft length and transom height are related, but they are not identical.

Shaft length is the motor’s specified measurement between its designated mounting reference and the anti-ventilation plate.

Transom height is the height of the boat’s mounting area, measured according to the boat manufacturer’s method.

The measurements help you determine whether the motor and boat are compatible. But the motor’s nominal shaft length should not be selected by treating both numbers as interchangeable.

A small difference between the two numbers does not automatically mean the motor is wrong. Mounting arrangements and manufacturer conventions matter.

Ignoring Manufacturer Specifications

A tape measure is useful, but it cannot replace the owner’s manual.

Manufacturers may use different measurement conventions or provide model-specific instructions. The manual may also list approved shaft options, mounting heights, and installation limits.

Ignoring this information can lead to a motor that does not fit the boat as intended.

Before buying a motor, check the boat manufacturer’s recommended shaft length and the outboard manufacturer’s specifications. If they appear to conflict, contact the manufacturers or a qualified marine technician before proceeding.

Choosing a Shaft Based Only on Boat Size

A boat’s overall length does not tell you exactly which shaft length it needs.

Two boats of the same length may have different transom heights, hull shapes, and mounting systems. One may require a short shaft while the other needs a long or extra-long shaft.

Boat weight, intended use, engine power, and propeller requirements can also affect the correct installation.

Instead of choosing by boat length alone, use the transom measurement, the boat’s manual, and the outboard’s installation guide together.

What Happens If Your Outboard Shaft Is Too Short or Too Long?

The wrong shaft length can affect the way a boat performs. It can also create mounting and clearance problems.

If you suspect that your motor is incorrectly sized, check the manufacturer’s recommended installation height before changing the mounting position.

Problems With a Shaft That Is Too Short

A shaft that is too short may leave the propeller too close to the water’s surface.

This can cause several problems.

Reduced propeller grip: The propeller may not remain properly immersed, making it harder to deliver steady thrust.

Ventilation: Air or exhaust gases may reach the propeller. Engine speed can rise while the boat loses forward thrust.

Inconsistent performance: The problem may become more noticeable when the boat accelerates, turns, or moves through choppy water.

Poor handling: The boat may respond less predictably if the propeller repeatedly loses its grip on the water.

For example, a boat designed for a 20-inch long-shaft motor may not perform as intended with a 15-inch short-shaft motor. The propeller may sit too high when the motor is mounted according to the boat’s intended setup.

The solution is not always to buy a longer motor immediately. First, check the actual shaft category, the motor’s mounting height, and the manufacturer’s recommendations.

Problems With a Shaft That Is Too Long

A shaft that is too long can also cause problems.

Increased drag: If the gearcase sits deeper than intended, it may create extra resistance as the boat moves through the water.

Reduced efficiency: Additional drag can affect speed and fuel use, depending on the boat and installation.

Mounting issues: The motor may not sit at the recommended height, and the bracket may not fit the transom as designed.

Clearance concerns: A motor that is too long for the installation may interfere with the hull, steering setup, or other components in certain positions.

For example, installing a 25-inch extra-long-shaft motor on a boat designed for a 15-inch short-shaft motor may place the lower unit much deeper than intended if the mounting arrangement is not designed for it.

A longer shaft is not automatically safer or more powerful. The correct choice is the one specified for the boat and motor combination.

If you notice ventilation, excessive drag, unusual vibration, or poor handling, do not assume shaft length is the only cause. Propeller condition, engine mounting height, trim, and other factors may also be responsible.

Tips for Choosing the Correct Outboard Motor Shaft Length

After measuring your motor and transom, take a few extra steps before purchasing an outboard. These checks can help you avoid buying a motor that does not fit your boat.

Check Your Boat Manufacturer’s Recommendations

Start with the boat owner’s manual. It may specify the recommended shaft category, engine mounting height, and compatible horsepower range.

If the manual is unavailable, contact the boat manufacturer or an authorized dealer. Provide the boat’s make, model, year, and any relevant transom measurements.

Do not rely only on general charts. They are useful for an initial estimate, but your boat’s specific design is more important.

Review the Outboard Motor Manual

Read the installation section of the outboard manual before buying or mounting a motor.

Confirm the following details:

• The nominal shaft length.
• The recommended transom height.
• The approved mounting position.
• The engine’s maximum permitted mounting height and installation limits.
• Any requirements for a motor bracket or special mounting arrangement.

If you are replacing an old engine, compare the new motor’s specifications with those of the old one. Even motors with the same nominal shaft length can have different mounting requirements.

Consider Your Boat’s Transom Design

Look closely at the transom before choosing a motor. Check whether it is flat, notched, raised, or fitted with an external bracket.

These features can affect the distance between the mounting surface and the water. They may also affect the correct motor mounting height.

For example, a boat with a raised mounting platform may require a different setup from a boat with a conventional transom, even if both have similar overall dimensions.

If your boat uses a jack plate or an adjustable motor bracket, follow the installation instructions for that equipment as well as the outboard manual.

Do not raise or lower the motor simply to compensate for a shaft-length mismatch without checking the approved installation range.

Ask a Qualified Marine Technician When Unsure

If you cannot confirm the correct shaft category, ask a qualified marine technician or authorized outboard dealer for help.

This is especially important when the boat has a custom transom, an unusual mounting bracket, or a replacement engine from a different manufacturer.

A technician can check the shaft specification, mounting height, propeller clearance, and compatibility with the hull.

Getting these details right before buying can save time and help prevent performance and installation problems.

FAQ

How do you measure shaft length on an outboard motor?

To measure shaft length, find the mounting reference point specified by the motor manufacturer. Measure vertically from that point to the anti-ventilation plate above the propeller.

Keep the tape straight and follow the measurement diagram in the owner’s manual. Repeat the measurement and compare the result with the motor’s published specifications.

Do not measure from the top of the engine cover or include the propeller.

Is outboard shaft length measured in inches?

Yes. Outboard shaft length is commonly described in inches in many markets.

Common nominal categories include 15 inches, 20 inches, 25 inches, and 30 inches. These generally correspond to short, long, extra-long, and ultra-long shaft options.

Some manufacturers may offer other sizes or use model-specific conventions. Always check the specifications for your particular motor.

What is the difference between a short-shaft and long-shaft outboard?

A short-shaft outboard commonly has a nominal shaft length of 15 inches, while a long-shaft outboard commonly has a nominal length of 20 inches.

The main difference is how the motor is designed to fit the boat’s transom and position the lower unit in the water.

A short-shaft motor is generally intended for a lower transom. A long-shaft motor is designed for a taller mounting arrangement.

Neither is universally better. The right choice depends on the boat manufacturer’s recommendations.

How do I know if my outboard motor shaft is too short?

Your motor may have a shaft-length problem if the propeller sits too close to the water’s surface when the motor is installed as recommended.

Possible signs include repeated ventilation, loss of thrust during acceleration, and inconsistent performance in turns.

However, these symptoms can also have other causes, including incorrect mounting height, propeller issues, or trim settings.

Check the motor’s nominal shaft length and the boat’s recommended installation before deciding that the shaft is too short.

Can I use a long-shaft outboard on a short-transom boat?

Sometimes a longer-shaft motor can be used with a suitable, manufacturer-approved mounting arrangement, but you should not assume it will fit a boat designed for a short shaft.

A long-shaft motor mounted on an unsuitable short transom may place the gearcase and propeller too deep in the water. This can increase drag and affect performance.

Check the boat and motor manuals before purchasing. If the boat requires a short shaft, choose that option unless the manufacturer approves another installation.

Does outboard shaft length include the propeller?

No. The standard nominal shaft-length measurement does not include the propeller’s length.

It refers to the specified distance between the motor’s mounting reference point and the anti-ventilation plate. The propeller is a separate component attached to the propeller shaft in the lower unit.

For this reason, measuring from the mounting bracket to the tip of the propeller will not give you the correct shaft-length measurement.

How do I measure an outboard motor shaft without removing it?

You can usually measure the shaft length without removing the motor.

With the motor switched off and securely positioned, locate the specified mounting reference point and the anti-ventilation plate. Use a tape measure to check the vertical distance between them.

If access is limited, use the manufacturer’s installation diagram and check the model information on the motor’s identification plate.

You do not need to remove the propeller or dismantle the lower unit for a standard shaft-length check. If you cannot access the reference points safely, ask a marine technician to help.

Conclusion

Measuring an outboard motor shaft starts with finding the correct mounting reference point and measuring vertically to the anti-ventilation plate. Repeat the measurement, record the result, and compare it with the manufacturer’s specifications.

Common shaft lengths include 15, 20, 25, and 30 inches, but the correct size depends on your boat’s transom and mounting design.

So, how do you measure shaft length on an outboard motor? Use the manufacturer’s specified reference points, check the boat’s transom height, and confirm compatibility with the owner’s manual before buying or installing a motor. This simple process helps you choose the correct shaft length for your boat.
