Lincoln SAE 300 MP Stainless (K4089-2) — Pipeline DC + Wireless Remote

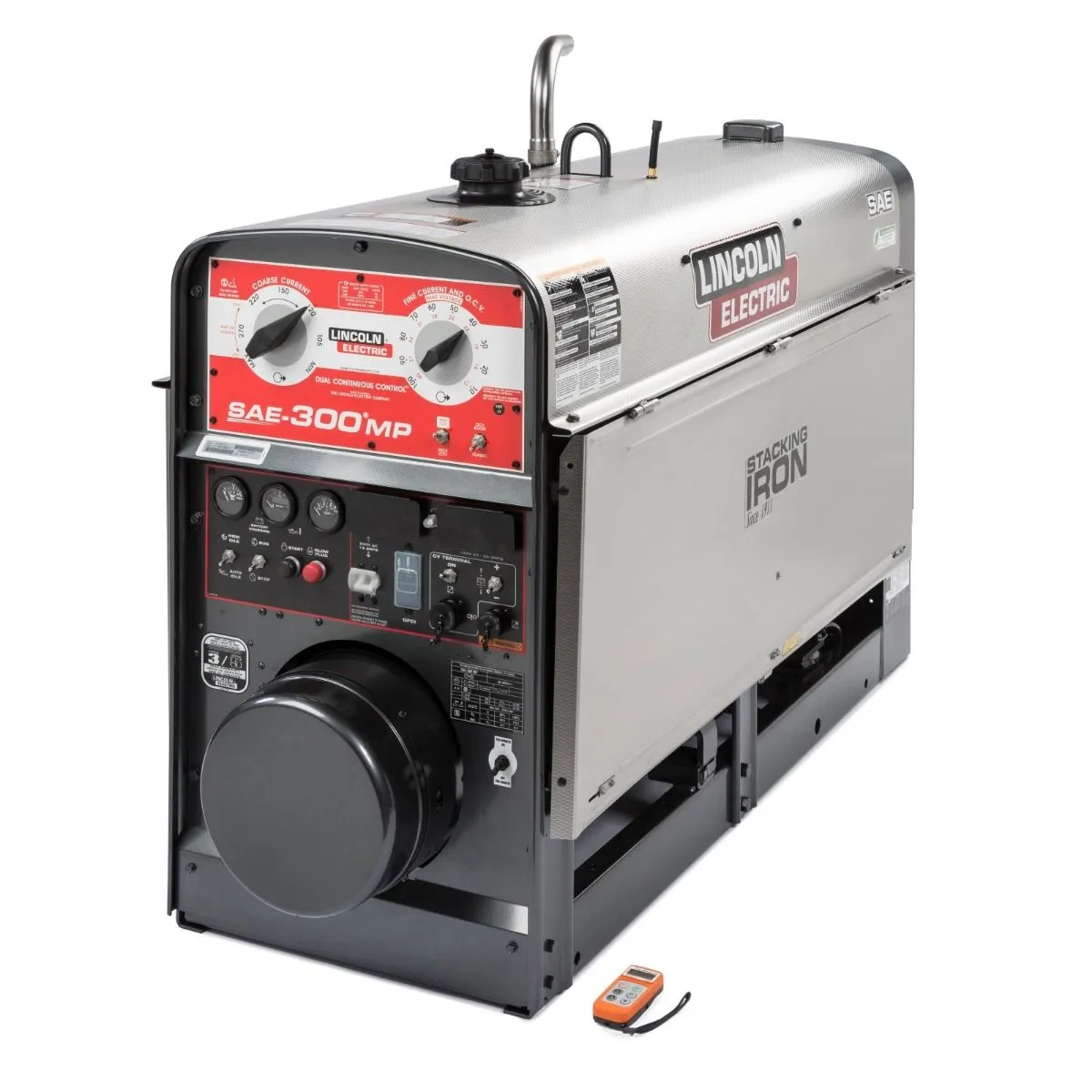

Lincoln SAE 300 MP Stainless Welder/Generator with Wireless Remote (K4089-2)

The Lincoln SAE 300 MP is a pipeline machine. Not a service truck welder that can do pipe — a purpose-built rotating armature welder that pipeliners have specified by name for decades, in this configuration with a stainless steel case, a Tier 4 diesel and a factory-installed wireless remote.

If you run cellulosic root passes for a living, you already know why this machine exists. If you do not, this is the wrong machine and there are better options below.

Price: $25,490.00. Made to order by Lincoln Electric — allow 3–6 weeks for shipping.

Pure DC Generator Technology

The arc is the entire argument for the Lincoln SAE 300 MP. It uses traditional rotating armature and field coil generator technology, built by Lincoln for many years, with all-copper windings for arc stability.

That produces a genuinely different arc from an inverter machine. Pipeline welders consistently prefer it for cellulosic work, and no amount of inverter arc-control software has fully replaced it in the field.

Two continuous dials on the control panel set voltage and current independently and precisely, which is what critical pipe procedures require. You can dial in a snappy, digging arc for root and hot passes with cellulosic electrode, or a soft, buttery arc for low-hydrogen fill and cap passes.

Output runs 300 amps at 60% duty cycle, welding up to 7/32 in. Fleetweld 5P+ cellulosic and Excalibur low-hydrogen electrodes.

The Wireless Remote Is Not an Accessory Here

Factory installed, weather resistant, with 400 ft of unobstructed range. From the remote you can start and stop the engine, activate the glow plug or choke for 1–30 seconds, switch between high and low idle, and adjust fine current control.

On a pipeline spread that is real time saved on every joint. Walking back to the machine to nudge current or drop to low idle, dozens of times a day, is exactly the cost this eliminates.

For best results, confirm your crew’s radio and remote frequencies do not conflict before the machine reaches site.

Engine, Emissions and Build

The unit meets all EPA Tier 4 requirements, running a three-cylinder, water-cooled, 1800 RPM diesel producing 24.7 HP. Fuel consumption is substantially lower than the previous engine generation, with a fuel gauge on the control panel.

The stainless steel case is the reason to choose this configuration over the painted version. On a pipeline right-of-way, a coastal job or anywhere the machine lives outdoors for its whole life, stainless is what it still looks and functions like in year ten — and it holds resale value accordingly.

At 1,432 lbs and 37 in. H x 24 in. W x 63 in. L (46 in. to the top of the exhaust), this is a trailer or skid-mounted machine.

Full Specifications

Is This the Right Machine for You?

Buy the Lincoln SAE 300 MP if you weld pipeline for income, run cellulosic root and hot passes, and the arc characteristic is worth more to you than the price difference. It is.

Buy the Lincoln Classic 300 MP Perkins at $15,750 if you need heavy CC/CV multiprocess capability rather than a dedicated pipe arc.

Buy the Miller Trailblazer 325 ArcReach or the Lincoln Ranger 330MPX EFI if this is for a service truck. They cost a fraction as much and do that job better.

Note the AC power limit. 3,000 watts is deliberately modest — this machine exists to weld, not to run a jobsite. If you need serious generator output alongside welding, look at the Big Blue 400 Pro Kubota or the Big Blue 800 Duo Air Pak.

Ordering the SAE 300 MP

Built to order by Lincoln Electric — allow three to six weeks. Ships new with the full 3-year manufacturer warranty.

Bidding a spread and need delivery tied to a start date? Send a quote request with your timeline and we will confirm Lincoln’s current build slot before you commit. For procedure or configuration questions, use the compatibility check.

Compare the range in engine drives.

Add the Lincoln SAE 300 MP (K4089-2) to your cart above — $25,490.00, made to order.

BEFORE YOU GO

Buying multiple machines for a spread? Tell us the quantity and your mobilisation date and we will quote volume pricing and coordinate delivery against Lincoln’s build schedule. Text or call +1 (207) 216 3794, WhatsApp the same number, or email info@universalengineparts.com.

Specifications are supplied by Lincoln Electric and may change without notice. Lead times depend on Lincoln’s build schedule and are estimates. Follow the operator’s manual for all welding, servicing, lifting and mounting procedures. Diesel engine drives must be operated in ventilated areas. Prop 65 warning applies.

FREQUENTLY ASKED QUESTIONS

Why do pipeline welders prefer rotating armature machines over inverters? The arc behaves differently. Rotating armature generators produce the arc characteristic that cellulosic electrodes were developed around — particularly on root and hot passes, where the arc has to dig and stay stable out of position. Inverters have improved enormously, but on cross-country pipeline work the preference persists for good reason.

What is a cellulosic electrode and why does the machine matter? Cellulosic rods like Fleetweld 5P+ (E6010) have a coating that burns to produce a deep, forceful arc, which is what lets a root pass penetrate and tie in properly. They demand a machine that can deliver that arc cleanly, and they need DC. This is the machine built for them.

What is the difference between a root pass and a hot pass? The root pass is the first pass, fusing the inside of the joint. The hot pass follows immediately at higher current to burn out slag and defects from the root and consolidate it. Both are usually run with cellulosic rod, and both are where arc quality matters most.

What does the wireless remote actually control? Engine start and stop, glow plug or choke for 1–30 seconds, high or low idle, and fine current adjustment — from up to 400 ft away, in weather. It is factory installed rather than bolted on.

What does EPA Tier 4 mean? It is the current US emissions standard for off-road diesel engines, limiting particulates and nitrogen oxides. Compliance is often mandatory on federal, state and large commercial contracts, so it is a bidding requirement as much as an environmental one.

Why is the AC generator power only 3,000 watts? Because this is a welding machine first. 3,000 watts covers a grinder and lights. If you need to power a jobsite, buy a different class of machine — the comparison above shows the alternatives.

Is the stainless case worth it? On a machine that will spend ten years outdoors on a right-of-way, yes — both in service life and in resale. On a machine that lives in a shop, no.

Why does it take 3–6 weeks? Lincoln builds this configuration to order rather than holding it in stock. It is a genuine new-build lead time, not a backorder of something discontinued.

How is a 1,432 lb machine transported? Trailer, skid or flatbed with proper tie-down. Confirm your lifting arrangement and trailer rating before delivery.

What warranty is included? Three years from Lincoln Electric. See warranty information and shipping information.
