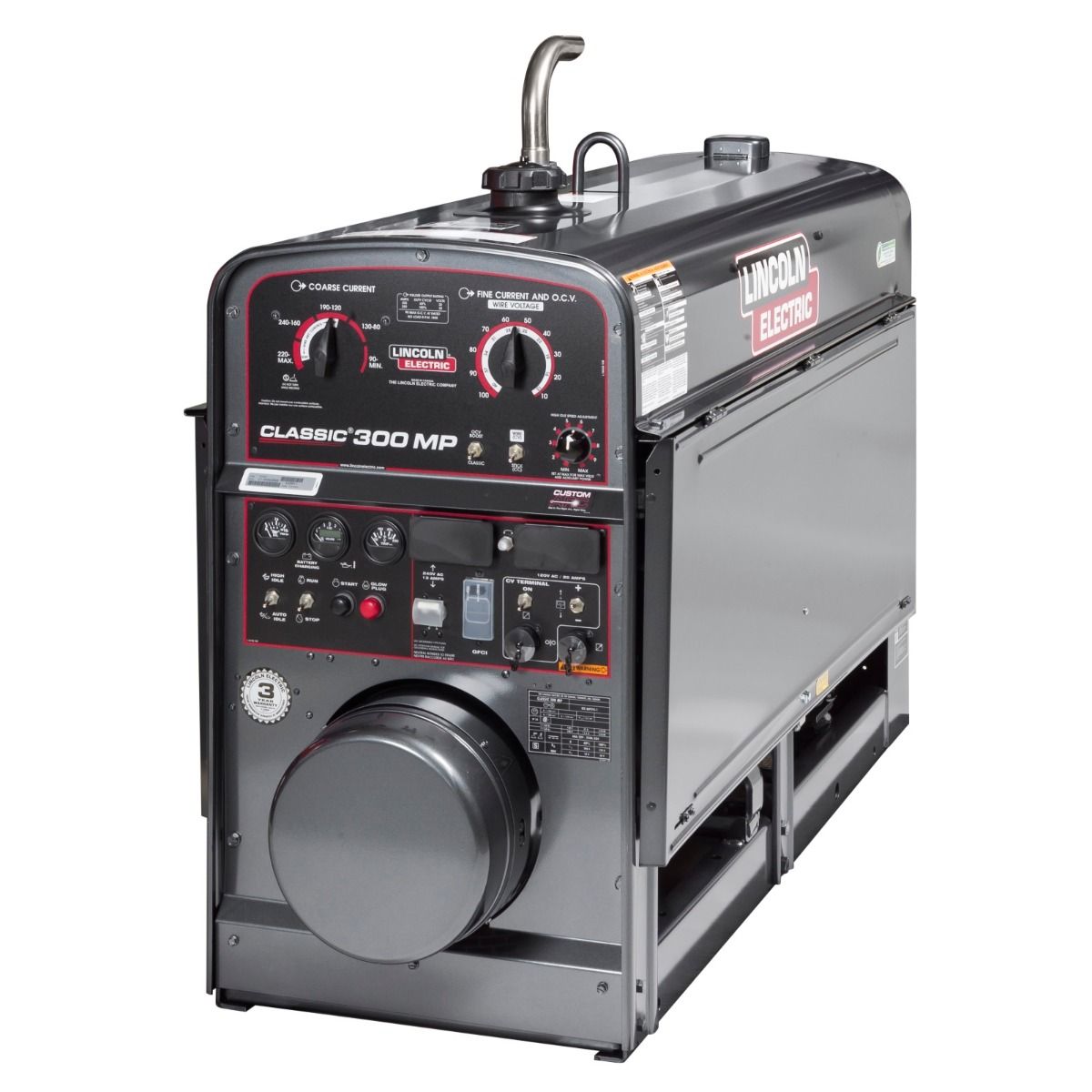

300 MP PERKINS CC/CV WELDER GENERATOR

Buy 300 MP PERKINS CC/CV WELDER GENERATOR Online

The 300 MP PERKINS CC/CV WELDER GENERATOR is a heavy-duty engine-driven welding system built for pipeline work, construction, maintenance, and field fabrication. Powered by a 24.7 HP Perkins 403F-15T turbo diesel engine, this machine delivers smooth, reliable DC welding output with the versatility needed for demanding jobsite lincoln electric 300 applications. The 300 MP PERKINS CC/CV WELDER GENERATOR offers a 40–350 amp DC welding range, 70 hp boat motor rated output of 300A at 32V/60% duty cycle and 250A at 30V/100% duty cycle, plus 3,000 watts of single-phase auxiliary lincoln electric sae 300 mp power for tools and support equipment. It also supports multiple processes including Stick, TIG, MIG, Flux-Cored, and gouging, making it a practical all-in-one solution for professional welders.

Designed for precision and productivity, this welder generator features five-step current control with fine tuning for accurate adjustment of amps, volts, and slope. Lincoln’s CustomArc control on the Perkins model adds up to 150 RPM of engine speed lincoln sae 300 mp adjustment to help fine-tune heat input at the arc. With a durable diesel platform, all-copper windings, and dependable pure DC welding performance, the 300 MP PERKINS CC/CV WELDER GENERATOR is an excellent lincoln welder 300 choice for operators who need rugged output, jobsite flexibility, and long-term reliability.

300 MP PERKINS CC/CV WELDER GENERATOR Specifications

• Product Name: 300 MP PERKINS CC/CV WELDER GENERATOR
• Model / Mfg. Part Number: Lincoln Classic 300 MP Perkins, K4263-1
• Machine Type: Engine-driven CC/CV welder/generator
• Engine: Perkins 403F-15T diesel, EPA Tier 4, 3-cylinder, 4-cycle, water-cooled, turbo-charged
• Engine Power: 24.7 HP at 1800 RPM
• Displacement: 91.5 cu. in. (1.5 liters)
• Welding Output Range: 40–350A DC
• Rated Output: 300A DC / 32V / 60% duty cycle
• 100% Duty Cycle Rating: 250A DC / 30V / 100% duty cycle
• Maximum OCV: 90V DC
• Generator Output: 3,000 watts AC, 60 Hz
• Auxiliary Power: 20 amps at 120V with sealed GFCI module; 13 amps at 240V
• Supported Processes: Stick, TIG, MIG, Flux-Cored, Gouging
• Current Control: 5-step current control with fine tuning for amps, volts, and slope
• CustomArc Control: Up to 150 RPM of engine speed adjustment for heat-input tuning
• Fuel Tank Capacity: 16 gallons (60.6 liters)
• Starting / Cold-Weather Support: Start button, glow plug button, and standard on-board block heater
• Dimensions (H × W × D): 37.1 × 24.3 × 62.8 in.
• Net Weight: 1364 lb (619 kg)
• Applications: Pipeline, construction, maintenance, and repair

Key Benefits

• Smooth, proven pure DC welding performance – The machine uses a hand-built pure DC generator with all-copper windings for a smooth, stable arc and better arc control in demanding field work.
• Excellent control for pipe welding – The 5-step current control and fine adjustment let operators dial in a digging arc for root beads or a softer arc for fill and cap passes.
• Multi-process versatility on the jobsite – With Stick, TIG, MIG, Flux-Cored, and gouging capability, this unit can handle a wide range of fabrication, repair, and construction tasks.
• Built-in CC/CV flexibility – The standard built-in CV output contactor helps support wire processes without needing a separate wire feeder module, reducing setup time and downtime.
• Fine heat-input adjustment – CustomArc on the Perkins model provides up to 150 RPM of engine speed adjustment, giving welders extra precision when tuning arc characteristics.
• Long run time for remote work – The 16-gallon fuel tank is designed to extend operating time in the field, which is especially valuable on pipeline and remote construction jobs.
• Cold-weather readiness – A standard on-board block heater helps pre-heat the engine for use in low-temperature environments.
• Reliable diesel durability – The Perkins Tier 4 turbo diesel platform, heavy-duty construction, and Lincoln’s long-established rotating armature/field coil design support dependable daily operation in harsh working conditions.

What is the main advantage of the 300 MP PERKINS CC/CV WELDER GENERATOR?

The main advantage of the 300 MP PERKINS CC/CV WELDER GENERATOR is its combination of high-output DC welding performance, multi-process capability, and 3,000 watts of auxiliary generator power in one diesel-powered machine.

What applications is the 300 MP PERKINS CC/CV WELDER GENERATOR best for?

The 300 MP PERKINS CC/CV WELDER GENERATOR is best suited for pipeline welding, construction, maintenance, repair work, and mobile field jobs where dependable CC/CV performance and rugged diesel power are essential.
