Name: Wilwood TX6R Big Brake Front Brake Kits 140-14558-C - universalengineparts
Price: 2600.00 USD
Availability: InStock

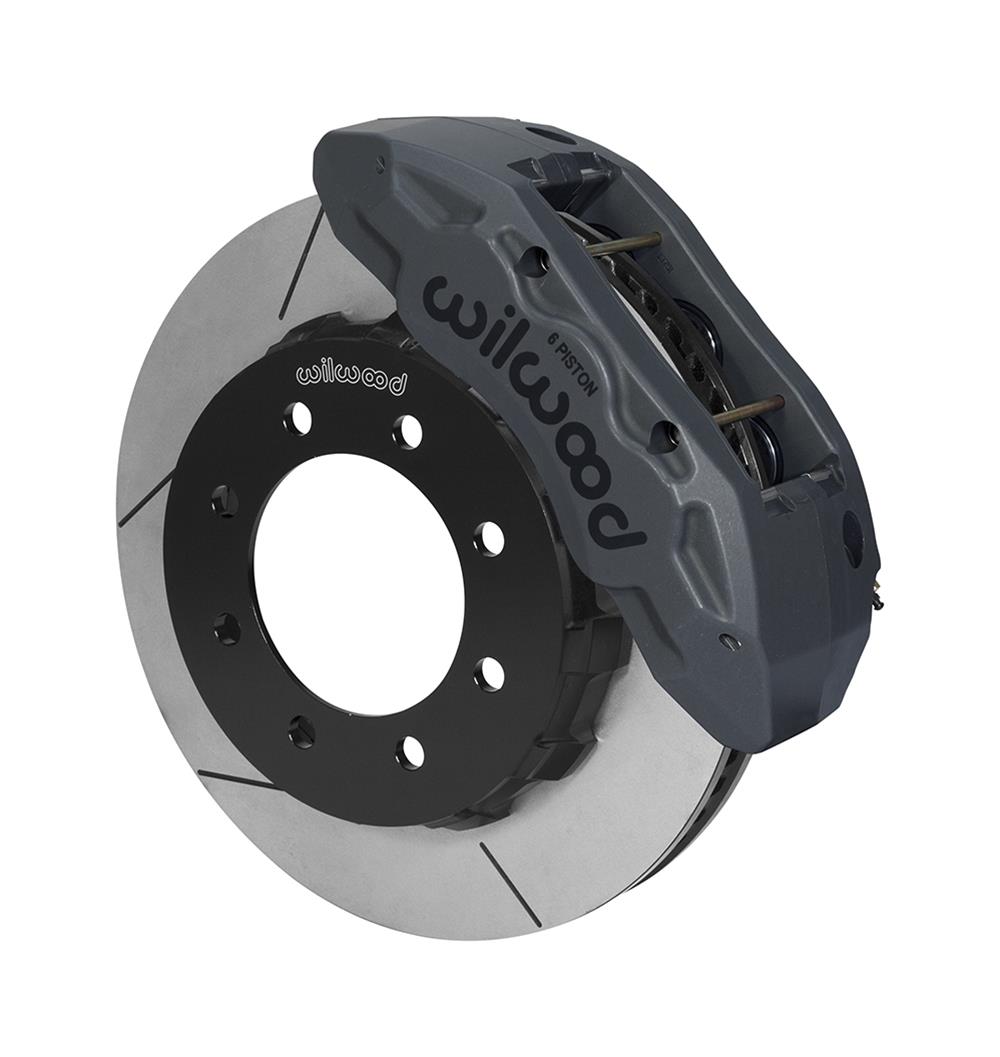

Wilwood TX6R Big Brake Front Brake Kits 140-14558-C

$2,600.00

Disc Brake Kit, TX6R Big Brake, Front, 15 in. Slotted Rotor, 6-Piston Gray Anodized, Caliper, Ford, Superduty, 4WD, Kit

Overview

Brand: Wilwood Disc Brakes

Manufacturer’s Part Number: 140-14558-C

Part Type: Disc Brake Kits

Product Line: Wilwood TX6R Big Brake Front Brake Kits

Summit Racing Part Number: WIL-140-14558-C

UPC: 889545081367

Position: Front

Front Rotor Included: Yes

Front Rotor Style: Slotted surface

Front Rotor Construction: Vented

Front Rotor Diameter: 15.00 in./381.00mm

Front Rotor Thickness (in.): 1.50 in.

Brake Rotor Bolt Pattern (mm): 8 x 170.00mm

Rear Rotor Included: No

Front Caliper Included: Yes

Front Caliper Piston Quantity: Six

Front Caliper Material: Forged billet aluminum

Front Caliper Color: Gray/Silver

Rear Caliper Included: No

Brake Pads Included: Yes

Friction Material Name: BP-Q

Parking Brake Provision: No

Minimum Recommended Wheel Diameter (in.): 20 in.

Front Spindles Included: No

Master Cylinder Included: No

Brake Booster Included: No

Remanufactured: No

Brake Hoses Included: No

Quantity: Sold as a kit.

Wilwood TX6R Big Brake Front Brake Kits

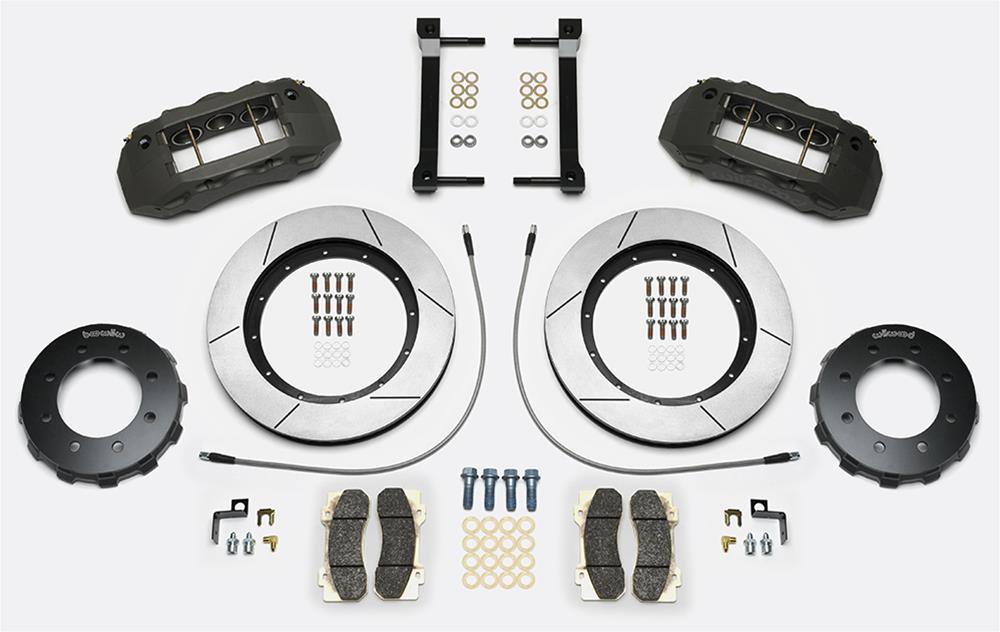

Wilwood TX6R Big Brake front brake kits deliver the ultimate in braking performance. Mating TX6R radial-mount 6-piston calipers and massive 15 in. to 16 in. GT-60 directional vane Spec-37 alloy rotors, these bolt-on kits offer consistent stopping power and extreme-duty durability under sustained high heat. The calipers are volume matched for compatibility with OE power brake system output. Kits also include radial-mount caliper brackets and all the necessary hardware to complete the installation. (Braided stainless steel flex lines will need to be purchased for some applications.)
