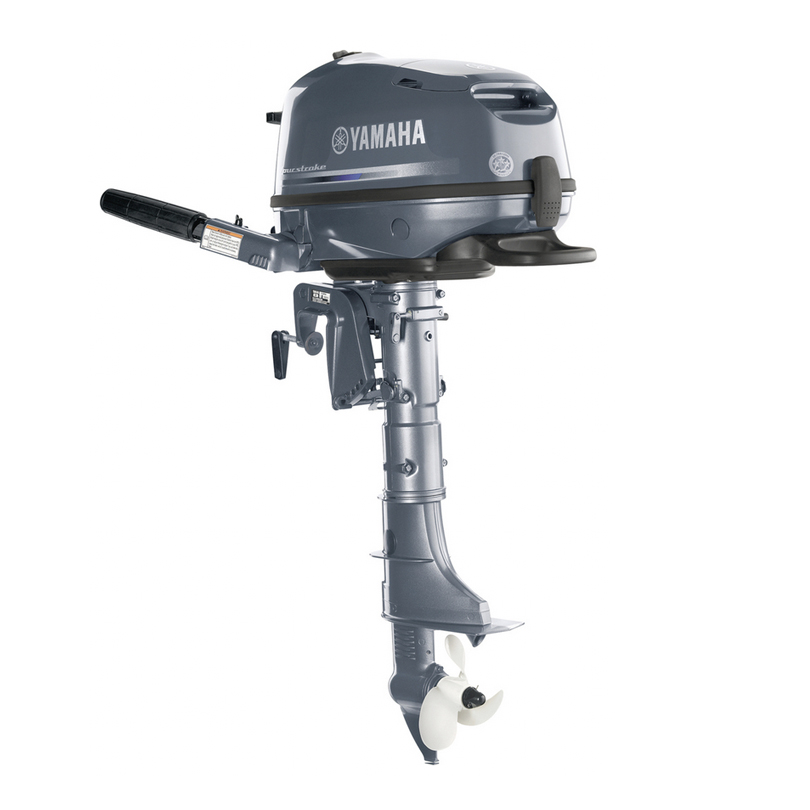

Yamaha F4LMHA 4 HP Outboard Motor
$990.00
Buy Yamaha F4LMHA 4 HP Outboard Motor Online
The Yamaha F4LMHA 4 HP Outboard Motor is a compact and dependable marine engine designed for boaters who need practical power, easy handling, and reliable performance. This Yamaha F4LMHA 4 HP Outboard Motor combines a 139cc single-cylinder engine with convenient tiller-handle controls, making it suitable for a variety of smaller boats and recreational applications. With its portable design and straightforward operation, this Yamaha F4LMHA 4 HP Outboard Motor offers an excellent solution for everyday boating needs.
The Yamaha F4LMHA 4 HP Outboard Motor features a 20-inch shaft and produces 4 horsepower at 4,500 RPM. Its full-throttle operating range is 4,000 to 5,000 RPM, providing useful performance for controlled cruising and maneuvering. The engine uses a carbureted fuel induction system and manual starting, keeping the operating system simple and familiar. For boat owners looking for a dependable yamaha 4 horsepower outboard, this model combines Yamaha engineering with a practical configuration.
One of the useful features of this Yamaha F4LMHA 4 HP Outboard Motor is its ergonomic starter handle with an integrated decompression device, which is designed to make manual starting easier. The tiller control provides forward, neutral, and reverse shifting along with a twist-grip throttle for convenient speed control. These features make the yamaha 4 hp outboard easy to operate when precise control is important.
The Yamaha F4LMHA 4 HP Outboard Motor also includes a built-in fuel tank with the option of connecting to an additional external tank for extended operating range. Its 6-amp alternator output can provide useful electrical power while the engine is running. The aluminum propeller complements the compact engine configuration, while manual tilt keeps the design straightforward.
For boaters searching for a 4 hp outboard, this Yamaha model offers a practical balance of compact size, useful power, and easy operation. The yamaha outboard 4hp configuration is particularly suited to users who want dependable propulsion without moving to a larger and heavier engine. The recommended fuel is 87-octane gasoline, and Yamaha recommends Yamalube 4M engine oil.
Overall, the Yamaha F4LMHA 4 HP Outboard Motor is a practical choice for smaller boating applications where manageable power, simple controls, and reliable operation matter. Its 139cc engine, 20-inch shaft, internal fuel tank, tiller controls, and 6-amp alternator make this Yamaha F4LMHA 4 HP Outboard Motor a well-equipped option for recreational boat owners.
Product Specifications of Yamaha F4LMHA 4 HP Outboard Motor
| Specification | Details |
|---|---|
| Brand | Yamaha |
| Model | F4LMHA |
| Engine type | Four-stroke, one-cylinder, OHV design, 2 valves per cylinder |
| Horsepower | 4 hp at 4500 rpm (prop shaft) |
| Displacement | 139 cc (8.5 cu in) |
| Full throttle range | 4000 – 5000 rpm |
| Cylinders | 1 |
| Fuel induction | Carburetor |
| Ignition system | CDI |
| Lubrication | Wet sump |
| Gear ratio | 2.08:1 (27:13) |
| Shaft length | 20″ (long shaft) |
| Controls / steering | Tiller |
| Starter | Manual (recoil) |
| Trim & tilt | Manual tilt |
| Trim angle | -4° to +16° |
| Tilt angle | 69° |
| Alternator output | 6 amp (charging kit may be required) |
| Propeller | Aluminum |
| Fuel tank | Internal tank (about 0.29 gal), with an option to connect an external tank |
| Recommended fuel | Octane 87 |
| Recommended oil | Yamalube® 4M |
| Dry weight | 61 lbs (about 28 kg) |
| Rotation | Standard |
| Warranty | Yamaha 3-year warranty |
| Package includes | Aluminum prop, internal fuel tank, fuel line, safety lanyard |
Benefits of Yamaha F4LMHA 4 HP Outboard Motor
- Truly portable. At about 61 lbs, the F4LMHA is easy to lift onto a transom, carry down a dock or stow in a car trunk. Built-in carrying handles, resting pads and an oil-leak prevention system let you store and transport it on its side.
- Easy, reliable starts. The ergonomic, easy-grip starter handle has a built-in decompression device, so pulling the cord takes less effort.
- Extended range when you need it. The built-in fuel tank can be switched to an additional external tank, so you aren’t limited to the small internal tank on longer trips.
- Simple, precise control. Tiller-handle control with forward-neutral-reverse shifting and an ergonomic twist-grip throttle make it easy to handle, even for first-time boaters.
- 20″ long shaft. Keeps the propeller properly submerged on boats with taller transoms, for better thrust and less cavitation.
- Fuel-efficient 4-stroke power. It runs on regular unleaded fuel with no oil-gas premix, and Yamaha states that its four-stroke outboards meet emissions requirements in all 50 states.
- Built to last in salt and fresh water. The design includes a 5-step anti-corrosion paint process, stainless steel driveshaft, prop shaft, shift shaft and steering tube, and sacrificial anodes. Yamaha’s YDC-30 aluminum alloy adds further corrosion resistance.
- Smooth, dependable engine design. A dynamically balanced crankshaft, pressurized lubrication and a built-in fuel filter reduce vibration and help protect the engine.
- Onboard charging. The 6-amp alternator can support small accessories such as a GPS or navigation light (charging kit may be required).
- Peace of mind. Yamaha’s 3-year warranty and a large dealer and service network back the motor.
What is the shaft length of the Yamaha F4LMHA 4 HP Outboard Motor?
The Yamaha F4LMHA 4 HP Outboard Motor has a 20-inch shaft, making it suitable for compatible boats requiring this shaft length.
Does the Yamaha F4LMHA 4 HP Outboard Motor have an internal fuel tank?
Yes. The Yamaha F4LMHA 4 HP Outboard Motor has a built-in internal fuel tank and can also be connected to an additional external tank for extended range.
