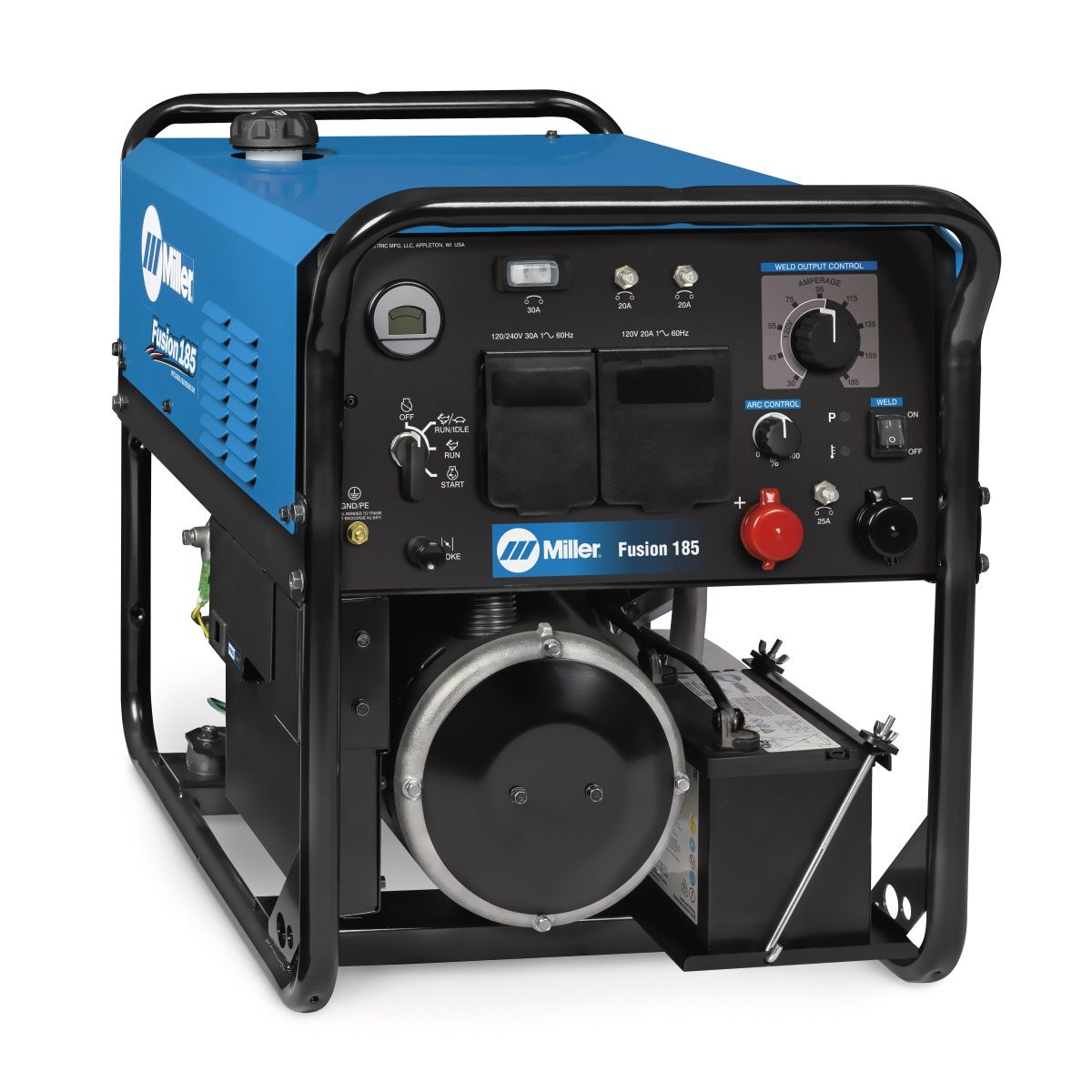

MILLER FUSION 185 WELDER/GENERATOR
$3,162.00
Buy MILLER FUSION 185 WELDER/GENERATOR Online
The MILLER FUSION 185 WELDER/GENERATOR is a versatile and portable engine-driven welding machine designed for professionals who need reliable welding performance and generator power in one compact unit. Built with Miller’s advanced PowerShift technology, this innovative machine allows users to weld using either the onboard gasoline engine or standard 120V/240V utility power, making it ideal for both indoor and outdoor lincoln welder 300 applications.
Delivering up to 185 amps of DC welding output, the Fusion 185 provides a smooth and stable arc for high-quality stick welding results with minimal spatter and rework. Its inverter-based technology improves weld consistency while making operation easier for both experienced welders and beginners. The powerful 13.4 HP engine ensures dependable performance in remote locations where electrical power is unavailable.
Beyond welding, the unit also functions as a powerful generator with 6,200 watts of continuous power and 6,500 watts of peak output, allowing you to operate grinders, drills, lights, and other jobsite equipment. Despite miller bluestar 185 carburetor capabilities, the machine remains lightweight and easy to transport, weighing only 242 lbs.
Whether you’re working in construction, farm maintenance, fabrication, or field repair, the MILLER FUSION 185 WELDER/GENERATOR delivers the flexibility, power, and durability professionals demand.
Product Specifications – MILLER FUSION 185 WELDER/GENERATOR
| Specification | Details |
|---|---|
| Product Name | MILLER FUSION 185 WELDER/GENERATOR |
| Model Number | 907781 |
| Brand | Miller |
| Welding Process | Stick (SMAW), DC TIG (Scratch Start) |
| Welding Output Type | CC/DC |
| Amperage Range | 30 – 185 Amps |
| Maximum Welding Amperage | 185A DC |
| Minimum Welding Amperage | 30A DC |
| Rated Output | 185A @ 26.4V (20% Duty Cycle) |
| Continuous Duty Output | 110A @ 24.4V (100% Duty Cycle) |
| PowerShift 120V Output | 90A @ 23.6V (40% Duty Cycle) |
| Input Voltage | 120V / 240V Utility Power |
| Generator Continuous Power | 6,200 Watts |
| Generator Peak Power | 6,500 Watts |
| Generator Output Voltage | 120/240 VAC |
| Generator Output Current | 40A/26A |
| Engine Type | Single-Cylinder, 4-Cycle OHV |
| Engine Brand | Kohler |
| Engine Power | 13.4 HP |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 6.25 Gallons (23.7 Liters) |
| Oil Capacity | 1.4 Quarts (1.3 Liters) |
| Engine Weld Speed | 3,600 RPM |
| Engine Idle Speed | 2,500 RPM |
| Cooling Method | Air-Cooled |
| Number of Cylinders | 1 Cylinder |
| Weldable Materials | Steel, Stainless Steel |
| Start Type | Electric Start with Recoil Backup |
| Net Weight | 242 lbs (110 kg) |
| Dimensions (L × W × H) | 31.25 × 20.13 × 24.75 Inches |
| Portability Options | Optional Lift Eye and Running Gear |
| Applications | Farm & Ranch, Construction, Maintenance, Service Trucks |
| Technology | PowerShift™ Technology |
| Plug Type | MVP Multi-Voltage Plug |
| Warranty | Miller True Blue® Warranty |
Benefits of MILLER FUSION 185 WELDER/GENERATOR
- PowerShift™ Technology allows operation using either the onboard engine or standard 120V/240V utility power for maximum flexibility.
- Dual-purpose design combines a professional welder and powerful generator in one machine.
- Produces a smooth and stable DC arc thanks to advanced inverter technology, reducing spatter and rework.
- Lightweight 242 lb construction makes transportation easier than many competing engine-driven welders.
- Provides 6,200 watts continuous and 6,500 watts peak generator power for running tools and jobsite equipment.
- The 13.4 HP Kohler gasoline engine delivers dependable performance in remote locations.
- Supports both Stick (SMAW) and DC TIG welding, making it suitable for various applications.
- The MVP Multi-Voltage Plug enables quick switching between 120V and 240V input power.
- Ideal for construction sites, farms, maintenance crews, service trucks, and field repairs.
- Offers excellent fuel efficiency and long operating time with its 6.25-gallon fuel tank.
What welding processes does the MILLER FUSION 185 WELDER/GENERATOR support?
The machine primarily supports DC Stick (SMAW) welding and can also perform DC TIG welding with compatible accessories.
Can the MILLER FUSION 185 WELDER/GENERATOR be used indoors?
Yes. Using PowerShift technology, you can connect the unit to 120V or 240V utility power for indoor welding without running the gasoline engine.
