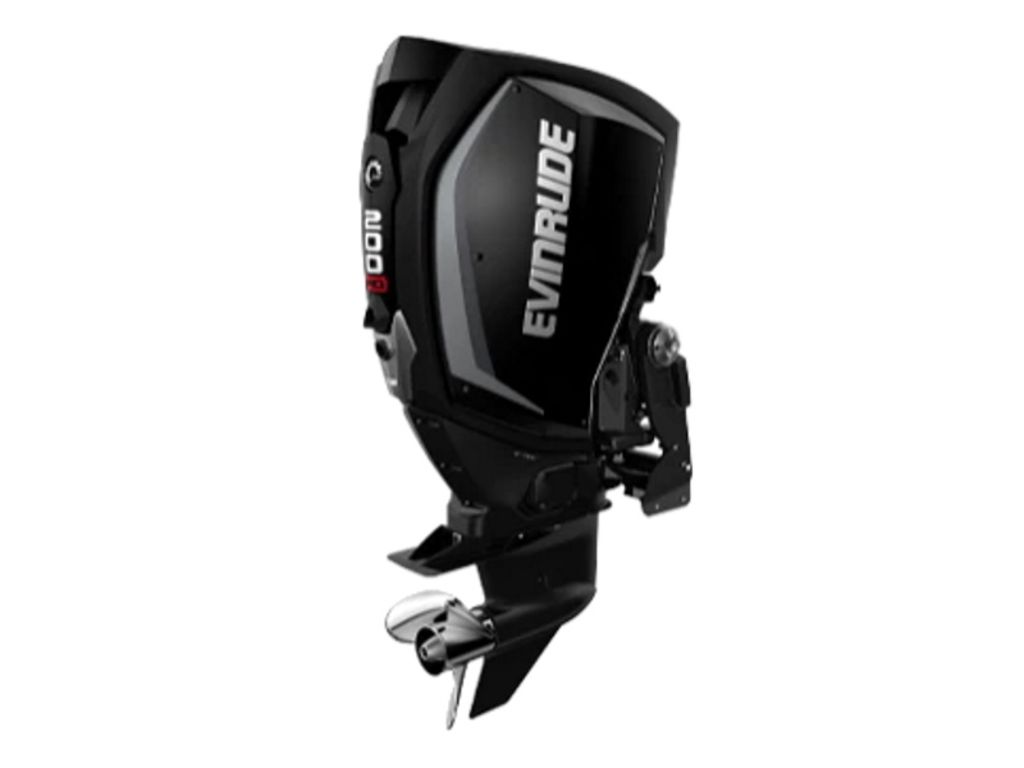

Buy Evinrude H200HGXF 200 H.O Outboard Motor Online
The Evinrude H200HGXF 200 H.O Outboard Motor is a high-performance marine engine designed for boaters who need strong power, responsive handling, and dependable performance on the water. Powered by an H.O. V6 74° E-TEC G2 direct-injection engine, this outboard delivers 200 horsepower with a 3.4-liter displacement. Its high-output configuration makes it suitable for larger recreational boats, fishing vessels, offshore applications, and other boats that require substantial propulsion power.
At the heart of the Evinrude H200HGXF 200 H.O Outboard Motor is E-TEC direct injection technology with stratified low-RPM combustion. This fuel system is engineered to provide efficient fuel delivery while maintaining strong engine performance. The engine operates across a full-throttle range of 5,400 to 6,000 RPM and features a 1.85:1 gear ratio, helping provide smooth and responsive operation in different boating conditions.
The 3.4-liter V6 engine uses a 98 mm bore and 76 mm stroke, providing the displacement needed for strong acceleration and torque. Electric starting makes operation convenient, while power trim and tilt allow the operator to adjust the motor for improved control and positioning. The H200HGXF configuration uses a 25-inch shaft and weighs approximately 558 pounds, making proper boat compatibility and mounting important considerations before purchase.
Another important feature of the Evinrude H200HGXF 200 H.O Outboard Motor is its high-capacity charging system. The alternator provides up to 133 amps total output, with 50 amps of dedicated charging capacity, helping support onboard electrical equipment and accessories. Its iSteer Dynamic Power Steering system is designed to provide precise steering control, while integrated iTrim and dual-axis rigging features contribute to a more convenient boating experience.
For fuel, the engine is designed to operate with 87-octane gasoline. Its multi-point targeted oiling system supports engine lubrication, while the E-TEC G2 platform was engineered with corrosion resistance and reduced maintenance requirements in mind. The 347 motor for sale is also listed with EPA, CARB 3-Star, and European Union emissions compliance.
Overall, the Evinrude H200HGXF 200 H.O Outboard Motor combines 200 HP output, V6 performance, direct-injection technology, power trim and tilt, advanced steering, and high electrical output in one powerful marine package. It is a practical option for boat owners looking for a high-output outboard designed for demanding on-water performance.
Product Specifications of Evinrude H200HGXF 200 H.O Outboard Motor
| Specification |
Details |
| Brand |
Evinrude |
| Model |
H200HGXF |
| Horsepower |
200 HP |
| Engine Type |
H.O. V6 74° E-TEC G2 D.I. |
| Engine Cycle |
2-Stroke |
| Displacement |
210 cu. in. (3.4 L) |
| Bore |
3.85 in. (98 mm) |
| Stroke |
3.00 in. (76 mm) |
| Bore x Stroke |
3.85 x 3.00 in. (98 x 76 mm) |
| Starting System |
Electric |
| Fuel Induction |
E-TEC Direct Injection with Stratified Low-RPM Combustion Mode |
| Recommended Fuel |
87 Octane |
| Recommended Oil |
XPS Marine XD100 |
| Full-Throttle RPM Range |
5,400–6,000 RPM |
| Gear Ratio |
1.85:1 |
| Controls |
ICON II Digital Shift and Throttle |
| Steering |
iSteer Dynamic Power Steering (DPS) |
| Steering Angle |
±30° |
| Trim Method |
Power Trim & Tilt |
| Trim Range |
-6° to 15° |
| Tilt Range |
81° |
| Lubrication |
Multi-Point Targeted Oiling |
| Alternator Output |
133 Amps Total |
| Dedicated Charging Output |
50 Amps |
| Output at Idle |
14 Amps |
| Oil Tank, On-Engine |
2 gal. (7.5 L) |
| Accessory Oil Tank Options |
1.8 gal. (6.8 L), 3 gal. (11.3 L), 10 gal. (37.85 L) |
| Shaft Length |
25 in. (635 mm) |
| Weight |
558 lb. (253 kg) |
| Color |
Slate Gray |
| Mounting Centers |
Minimum 28 in. (711 mm) |
| Installation |
Single / Multiple |
| Integrated Features |
Dual Axis Rigging / iTrim |
| Model-Specific Steering |
iSteer DPS |
| Emissions Compliance |
EPA 2013 / CARB 3-Star / European Union |
| Warranty |
5-Year Engine / 5-Year Corrosion |
| Color Customization |
400+ Color Panel Options |
Benefits of Evinrude H200HGXF 200 H.O Outboard Motor
- 200 HP Performance: Delivers strong 200 HP output for demanding marine applications.
- Powerful V6 Engine: Features a 3.4-liter H.O. V6 engine designed for responsive on-water performance.
- Direct Injection Technology: Uses E-TEC direct injection with stratified low-RPM combustion technology.
- Power Trim & Tilt: Allows convenient adjustment of the motor position for different boating conditions.
- Dynamic Power Steering: iSteer DPS provides responsive steering control and easier handling.
- Electric Starting: Provides convenient and reliable engine starting.
- High Alternator Output: Delivers 133 amps of total alternator output with 50 amps of dedicated charging capacity.
- Advanced Rigging: Includes Dual Axis Rigging and iTrim for enhanced integration and convenience.
- 25-Inch Shaft: Provides a 25-inch shaft configuration for compatible boat installations.
- Flexible Installation: Designed for single or multiple-engine installation configurations.
- Customizable Appearance: Offers more than 400 color panel and accent combinations.
- Emission Compliance: Listed with EPA 2013, CARB 3-Star, and European Union emissions compliance.
What is the horsepower of the Evinrude H200HGXF 200 H.O Outboard Motor?
The Evinrude H200HGXF produces 200 horsepower and uses a 3.4-liter H.O. V6 E-TEC G2 direct-injection engine.
What is the shaft length of the Evinrude H200HGXF?
The Evinrude H200HGXF has a 25-inch (635 mm) shaft length and weighs approximately 558 pounds (253 kg).
